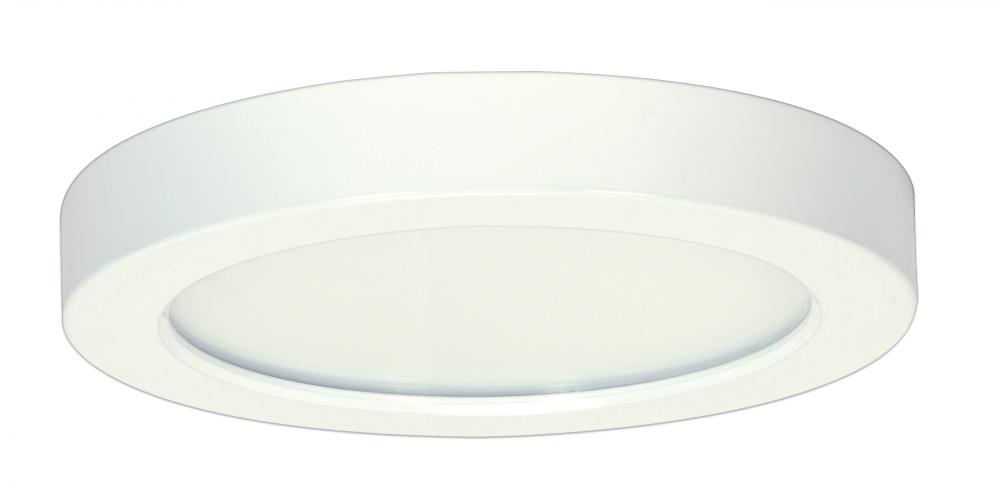

13.5 watt; 7" Flush Mount LED Fixture; 3000K; Round Shape; White Finish; 120 volts; 90CRI (S9684)
by Satco Products Inc.
13.5 watt; 7" Flush Mount LED Fixture; 3000K; Round Shape; White Finish; 120 volts; 90CRI
Product Specification
Item #
S9684
Dimensions
Height: 1.00"
Width: 7.00"
Additional product details
Vendor Item #
S9684
Category
Flush Mounts
Subcategory
Other Flush Mounts
Finish
White
Option
LED
, Prop 65
Category
Close-to-Ceiling
Sub Category
Edge Lit
Style
Utility
Avg Rated Hours
40000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
7
Dimmable
Yes-Dimmable
Each Height
9.65
Each Length
7.8
Each Width
1.57
Lumens
820L
Tariff Code
9405.11.8020
Warranty
5 Year Limited - Fixtures
Amps
0.113A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
108
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
Each Cube
0.0684
Each Quantity
1
Efficacy
60.74 LPW
FCC Compliant
Yes
Finish Family
White
Fixture shape
Round
Incandescent Equivalent
60W
Indoor Outdoor
Indoor
JA8 Compliant
No
Lens Material
Glass
Material
Aluminum
Mounting Procedure
Ceiling/Wall
Operating Temp
-18C (-0.4F) to +46C (+114.8F)
Order In Multiples Of
1
Pack Type
Color Box
Power Factor
0.99
Quantity In Pack
1
R9 Value
51
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
13.5W/LED/7"FLUSH/3K/RD/0-10V
Temperature (CCT)
3000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
1.88
Manufactured By
Satco Products Inc.
